535-1000

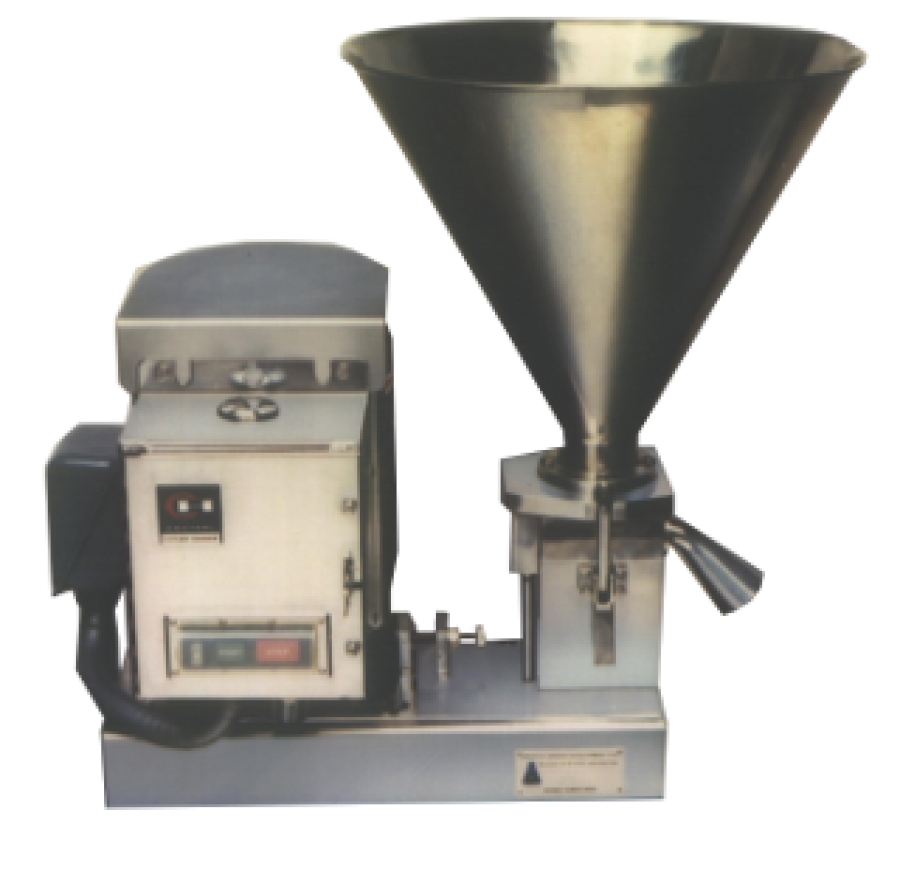

Model 535-1000
5 HP 86mm Single Plate Vertical Emulsifier



  • Motor 5 HP - 230/460 VAC - 3ø - 60 hz
  • Motor Speed 3600 RPM
  • Cutting Shaft Speed 5710 RPM
  • Hopper Capacity 50 lbs (22.7 kg)
  • Plate Size 86 mm Plate Hole Size 1.4 mm - 4.0 mm
  • Net Weight 225 lbs (102 kg)
  • Machine Dimensions 28.5" H x 12" W x 27" L 724 mm x 305 mm x 686 mm

Production Capacity - Processing a typical wiener or bologna formula, a production rate of 30-45 lbs/min can be realized utilizing a 1.7 mm plate. All Stainless Single Plate Horizontal Emulsifier with advanced engineering and sanitary features: Stainless steel machine designed for strength and cleanliness Optional motor selection We can customize to suit your specific requirements
