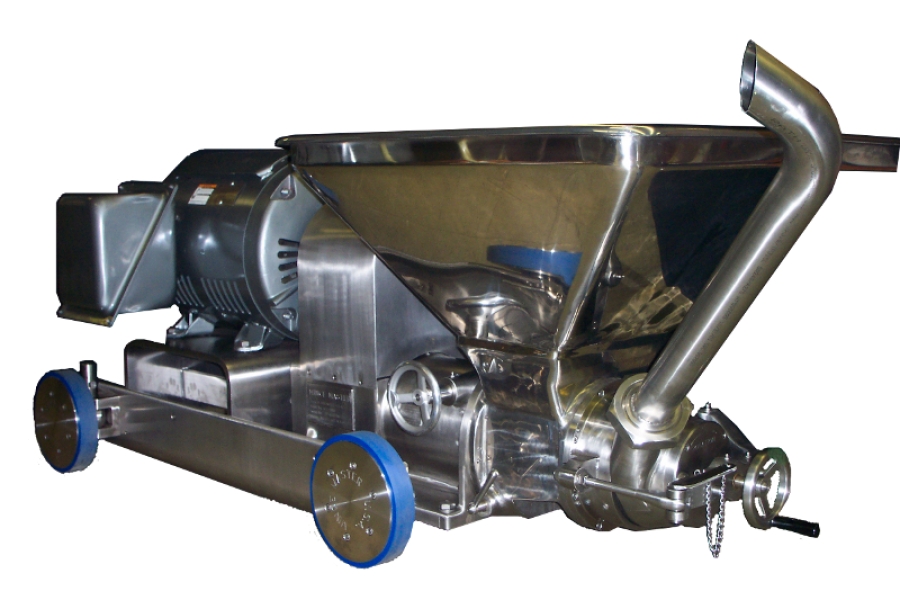

Model 477-1000
100/125 HP 225mm Dual Plate Horizontal Emulsifier


  • Motor 100 / 125 HP - 230/460 VAC - 3ø - 60 hz
  • Motor Speed 1770 RPM
  • Cutting Shaft Speed 3200 RPM
  • Hopper Capacity 350 lbs (159 kg)
  • Plate Size 225 mm Plate
  • Hole Size 1.0 mm - 31.0 mm
  • Net Weight 2,700 lbs (1,225 kg)
  • Machine Dimensions 35" H x 42" W x 74" L 889 mm x 1067 mm x 1880 mm

Production Capacity - If utilized as a single unit, processing a typical wiener or bologna formula, a production rate of 350-500 lbs/min can be realized utilizing a 1.7mm - 3.0 mm plate. If utilized as a finishing machine, in tandem production, this machine can process up to 600 lbs/min. All Stainless Dual Plate Horizontal Emulsifier with advanced engineering and sanitary features: Stainless steel machine and motor base with curved surfaces designed for strength and cleanliness Stainless steel wheels with replaceable USDA approved polyurethane outer ring Heavy duty bearing design Reinforced cutting unit Improved front closing design Heavy gauge stainless steel hopper designed for improved product flow Stainless steel belt and pulley cover Optional motor selection We can customize to suit your specific requirements
